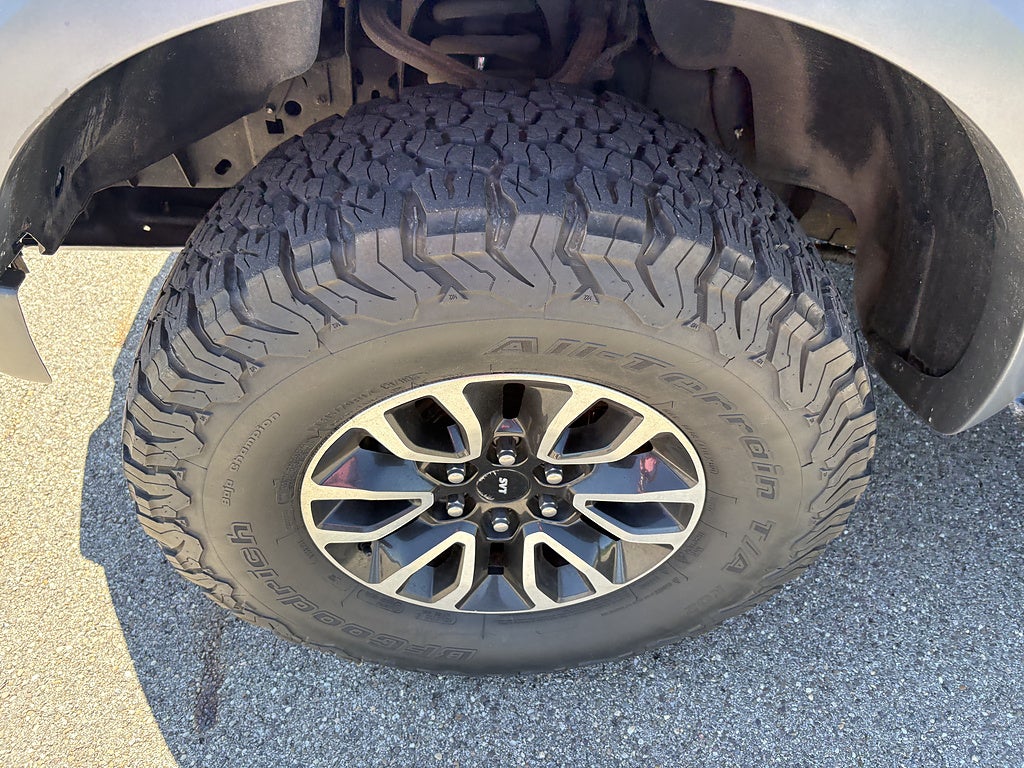

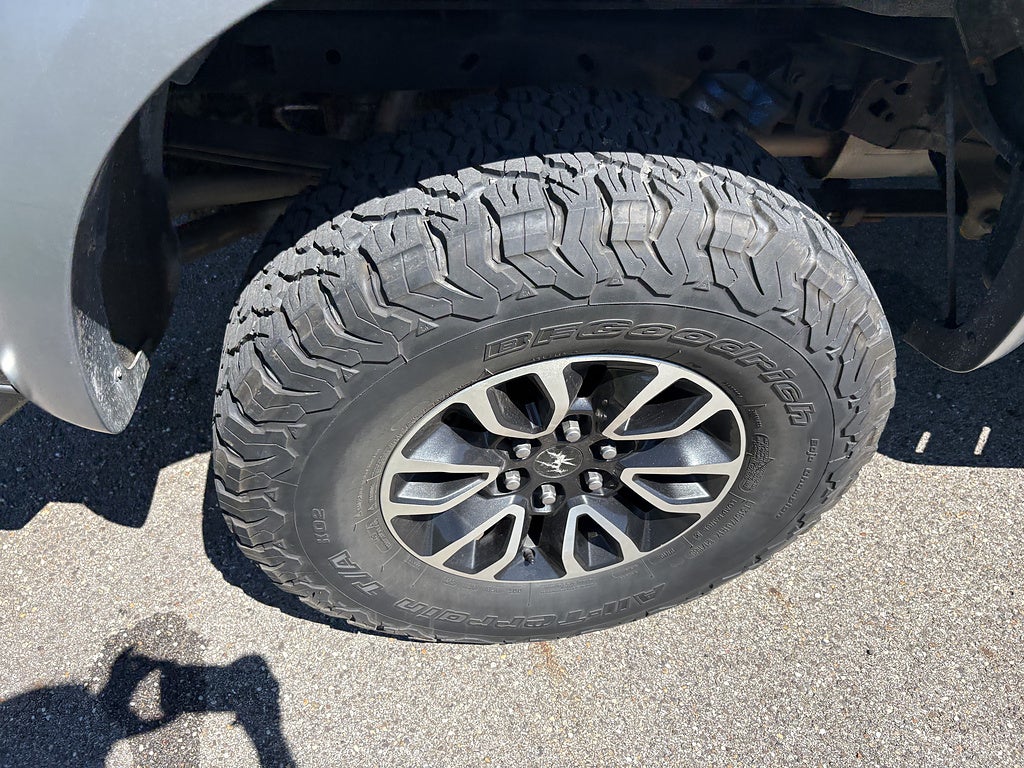

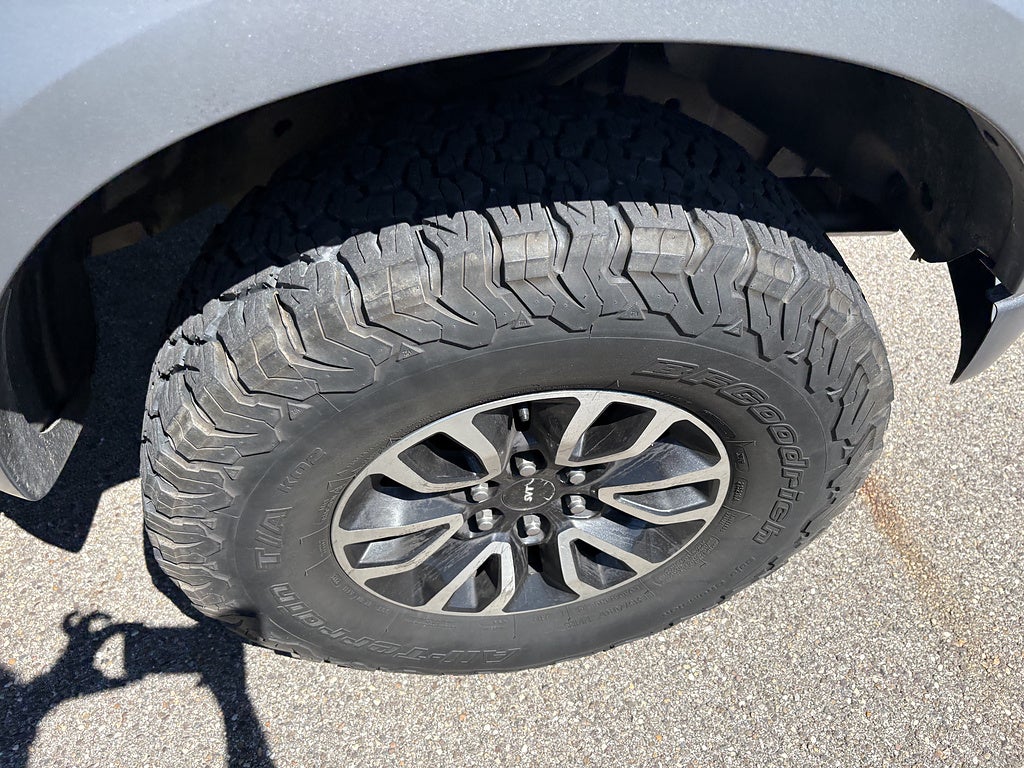

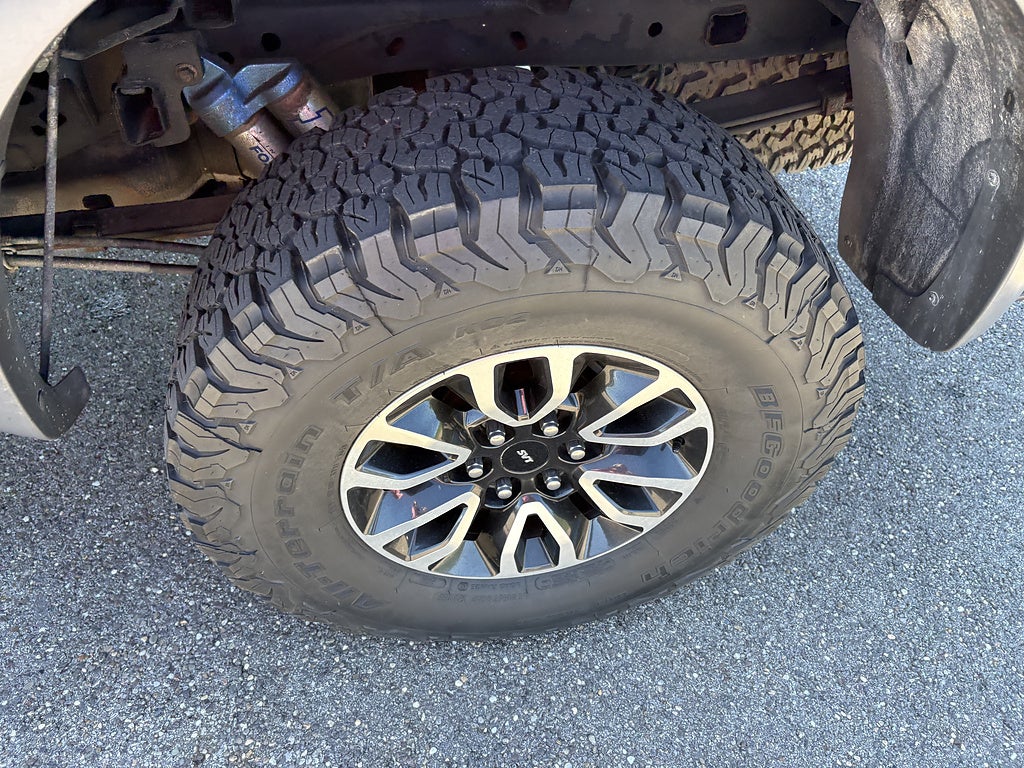

• LT315/70R17 all-terrain BSW tires
• 17" cast aluminum wheels w/painted & machined finish
• Full size spare tire
• Under frame winch-type spare tire carrier w/safety catch & lock
• Hood w/air extractors
• Body-color front bumper fascia
• Unique front/rear bumper w/painted foundry finish
• Cast aluminum running boards
• Unique front/rear wheel lip moldings

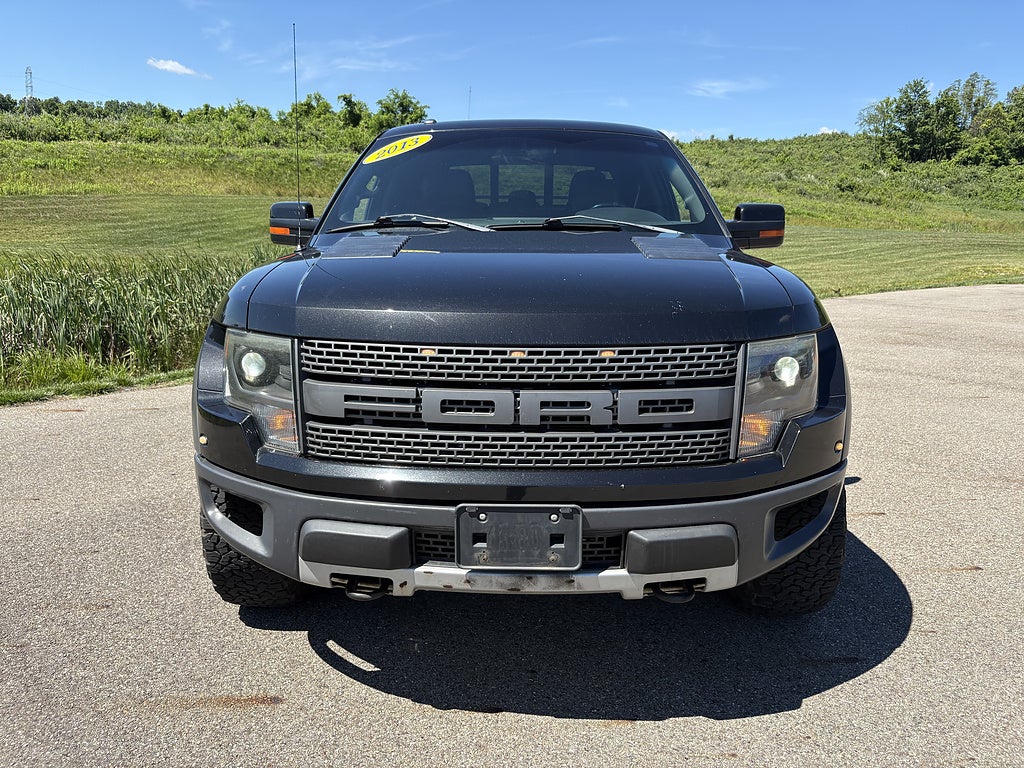

• Brick wall front grille
• Headlamps & tail lamps w/black surround
• Integrated marker lights
• Pwr side mirrors w/body-color skull caps
• Pwr sliding rear window
• Rear privacy tint glass
• Variable interval wipers
• Flared front fenders w/air extractors
• (4) full-size doors
• Removable tailgate w/key lock & lift assist

• AM/FM stereo w/CD player -inc: clock
• SiriusXM satellite radio *N/A in AK or HI*
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, Applink *Additional SYNC services available w/annual subscription fee*

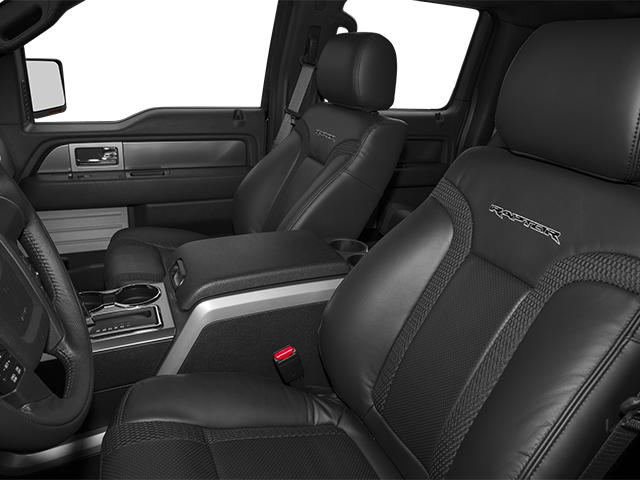

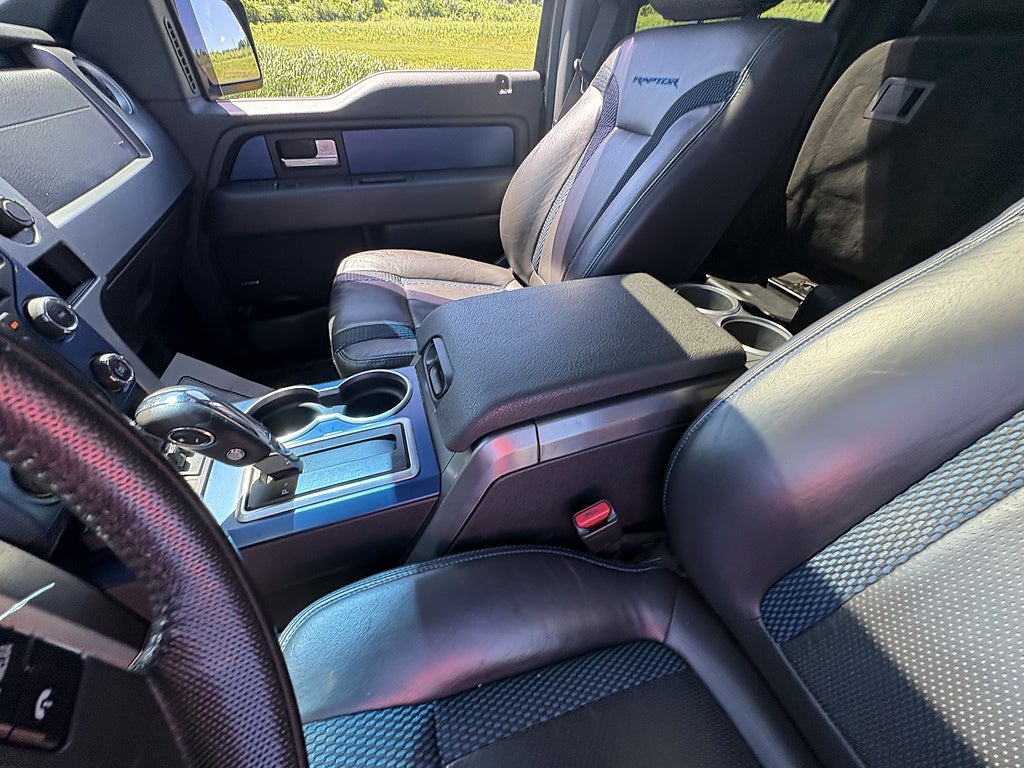

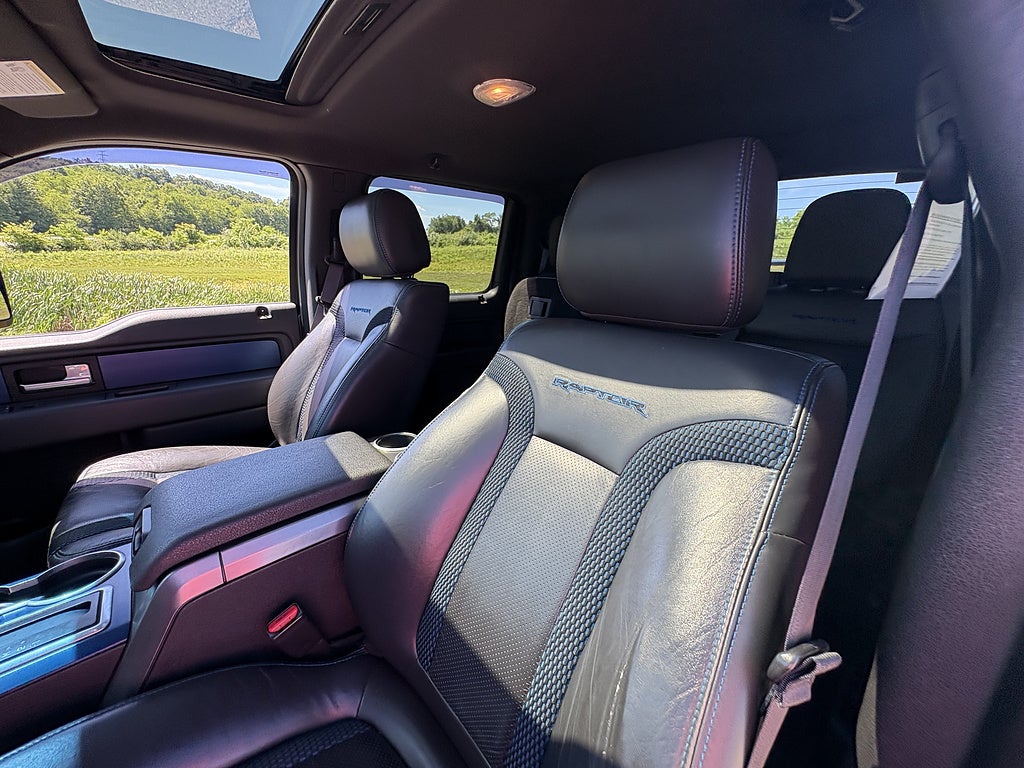

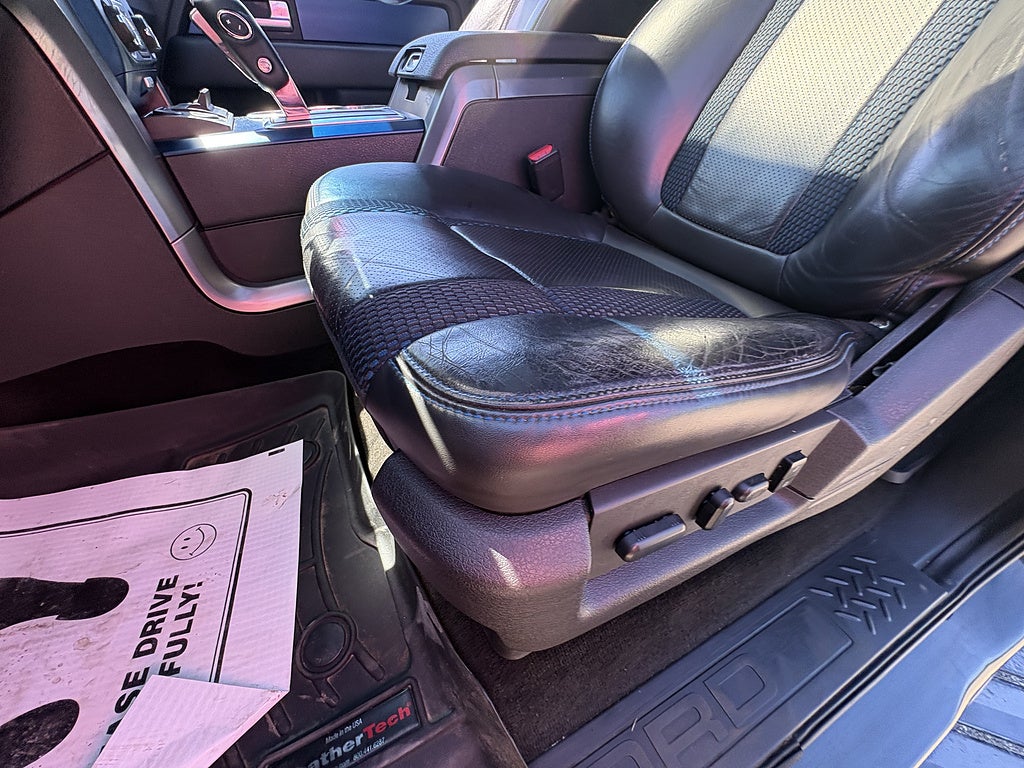

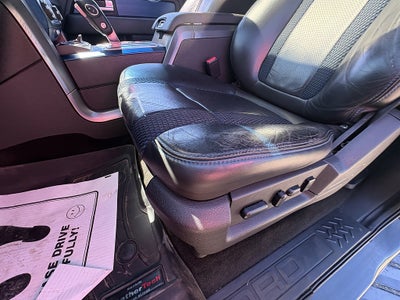

• Unique leather/cloth bucket seats w/6-way pwr driver seat, seat back bolsters

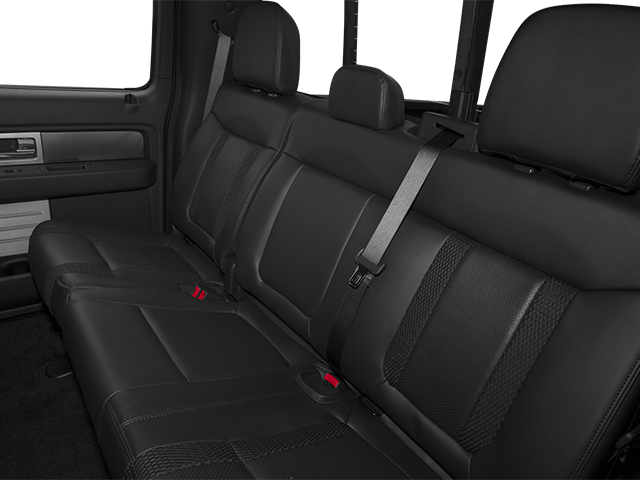

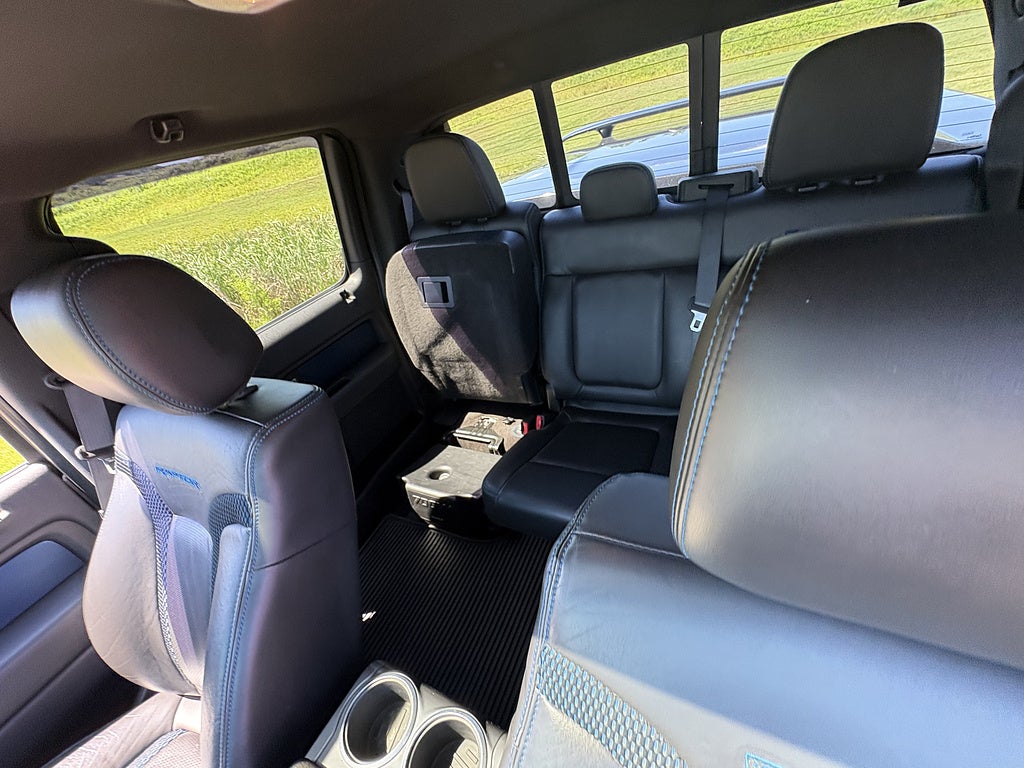

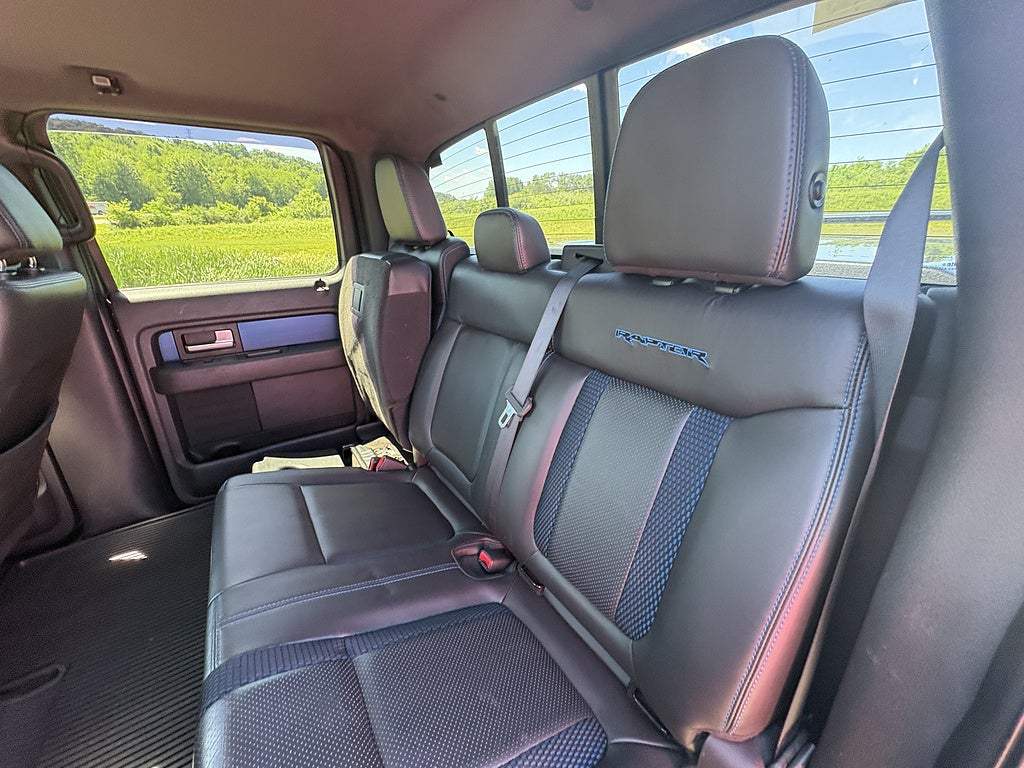

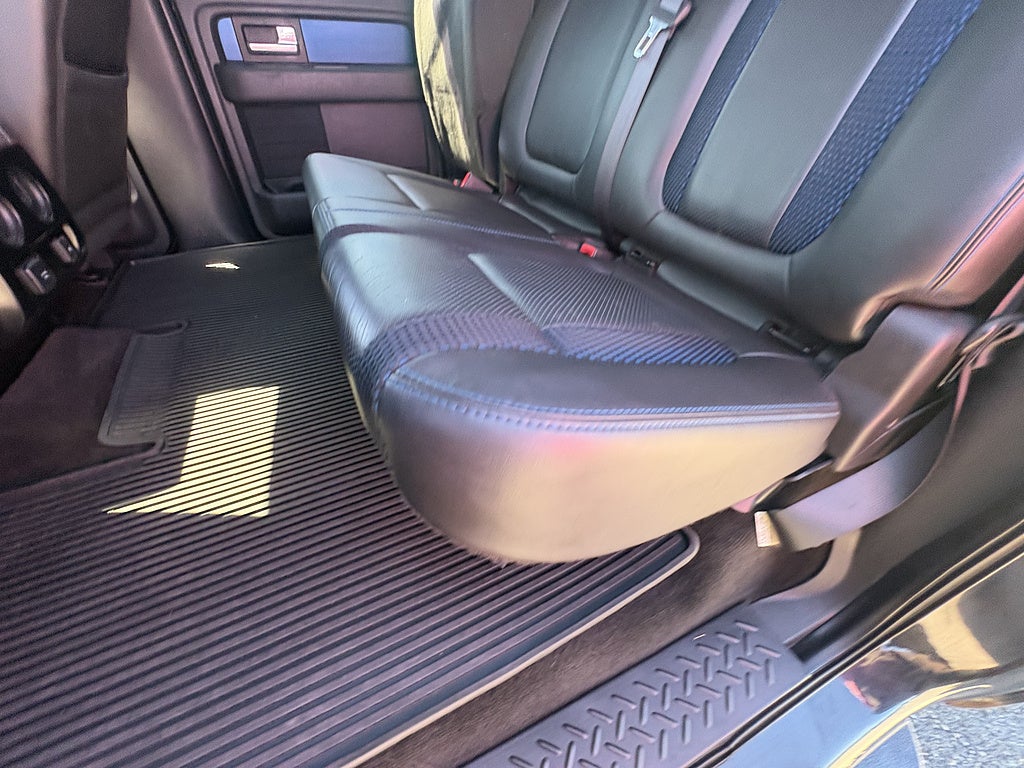

• Unique 60/40 flip-up rear split bench seat

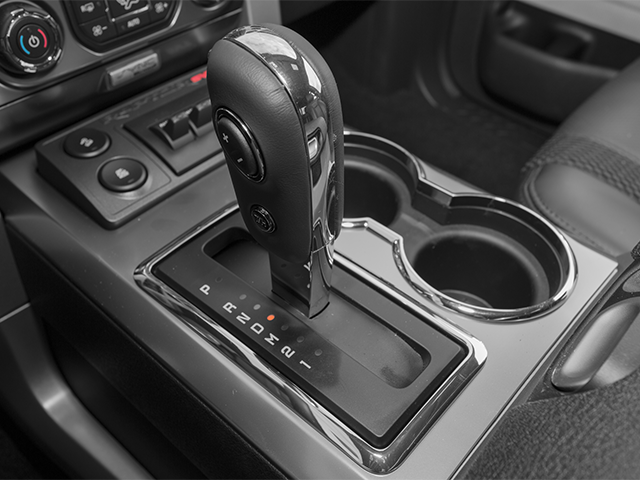

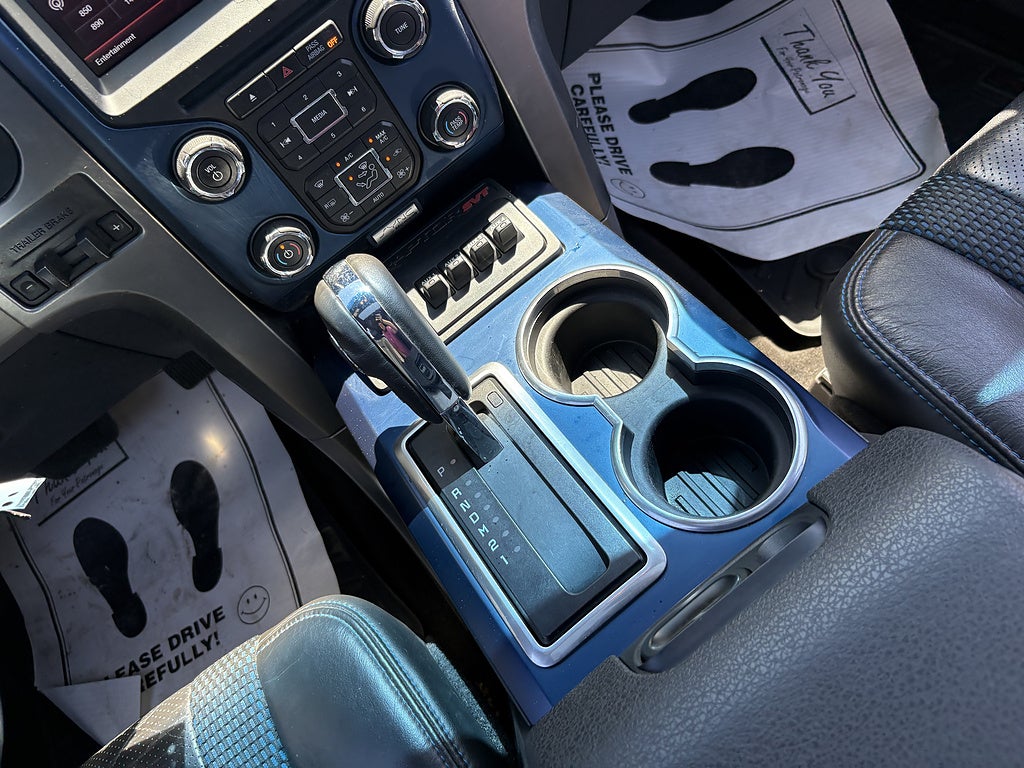

• Front flow-through console w/floor shifter
• Color-coordinated carpet -inc: unique front/rear rubber floor mats w/SVT logo on front mats

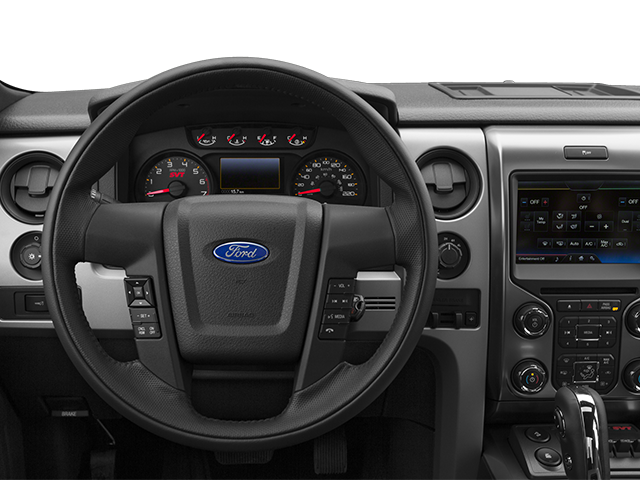

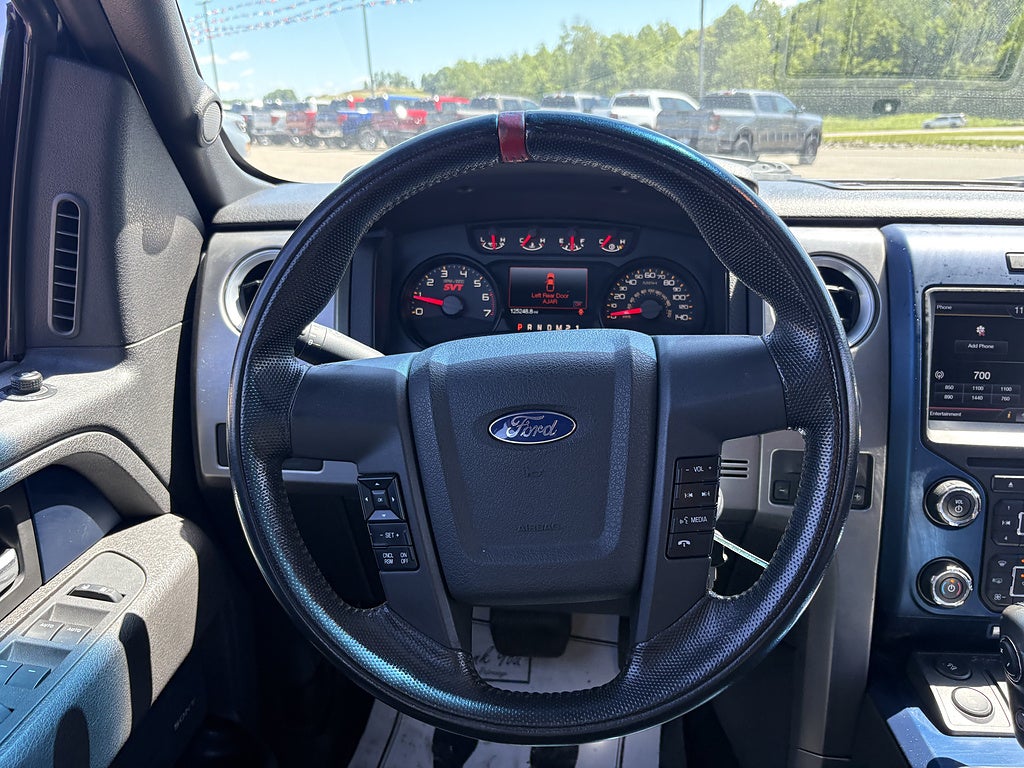

• Unique leather-wrapped steering wheel w/thumb pads
• Tilt steering column

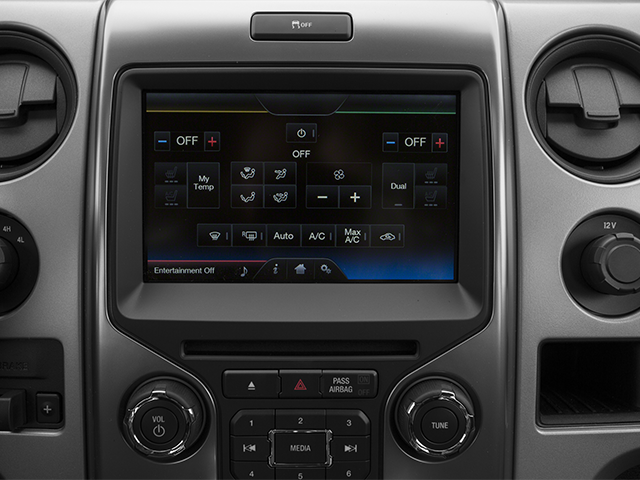

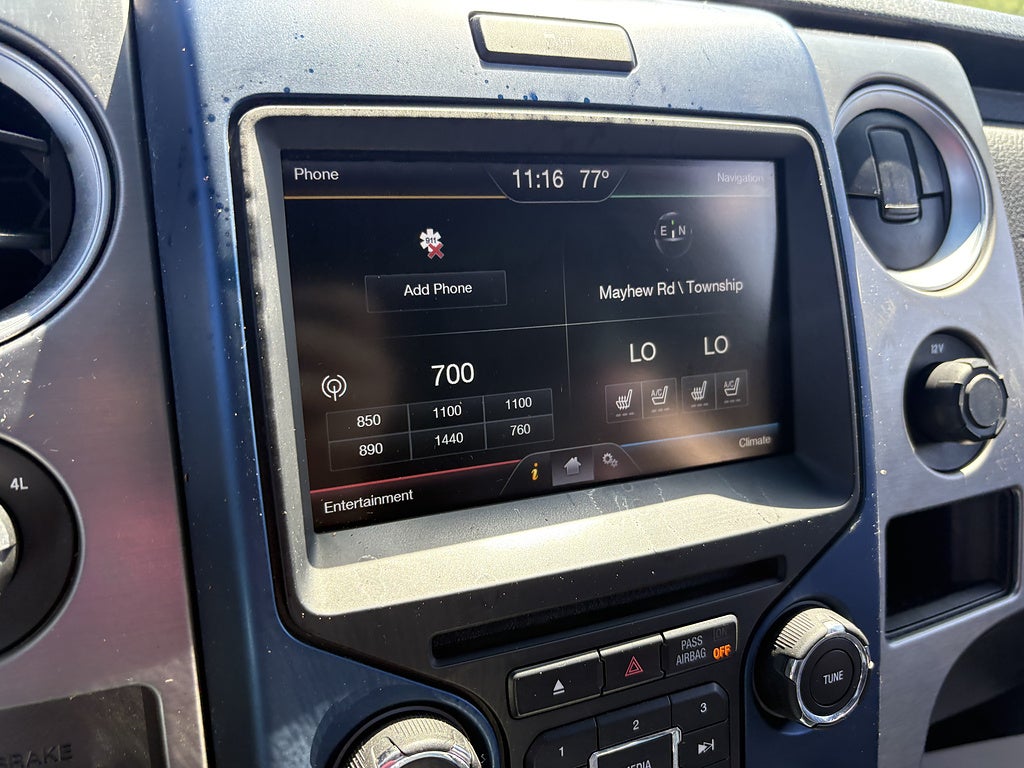

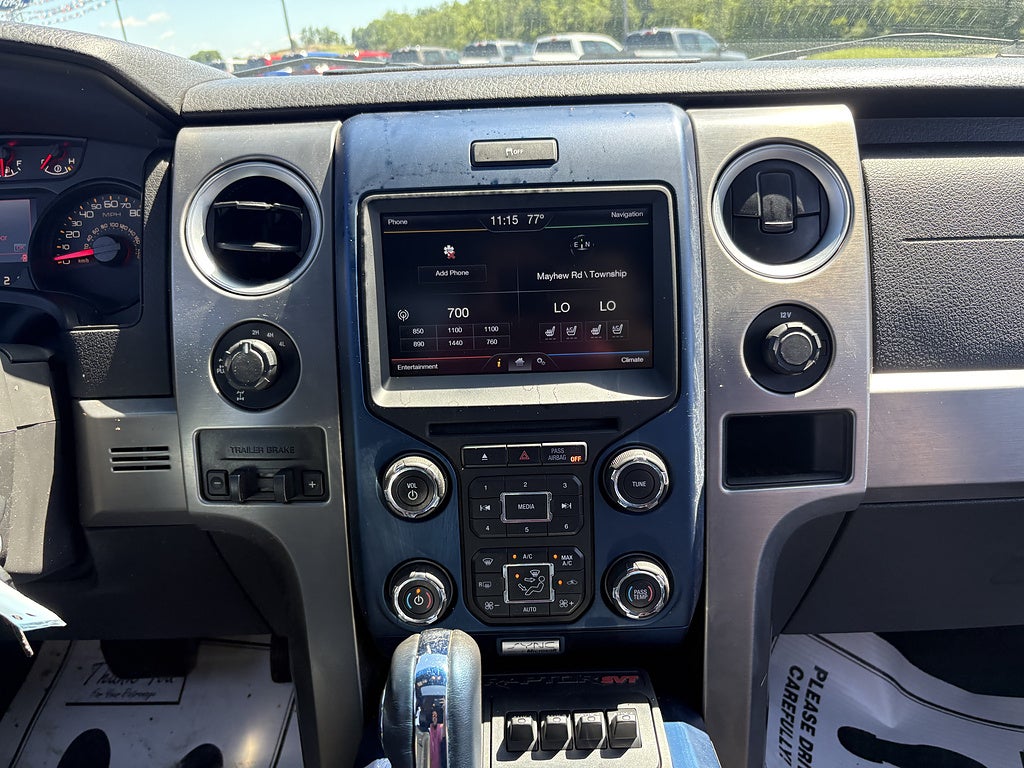

• MyFord -inc: 5-way steering wheel control switch, 4.2" LCD audio/climate control screen in center stack, 4.2" LCD productivity screen message center w/trip computer
• Pwr 1st & 2nd row windows
• Pwr door locks w/autolock feature
• Perimeter alarm
• Remote keyless entry key
• Driver side SecuriCode keyless entry keypad
• Cruise control
• SecuriLock passive anti-theft system (PATS)
• Manual air conditioning
• Rear window defroster
• Front pwr point
• Rear pwr point
• Console top switches -inc: hill decent, easy off-road mode, aux switch pack
• Unique IP center stack & door trim applique finish
• Front passenger side A-pillar grab handle
• 2nd row B-pillar grab handles
• Illuminated entry

• Anti-lock braking system (ABS)
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill start assist
• Hill descent control
• Dual stage driver & passenger front airbags
• Dual stage driver & front passenger seat-mounted side airbags
• Safety Canopy front/rear outboard side curtain airbags
• MyKey owner controls feature -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute

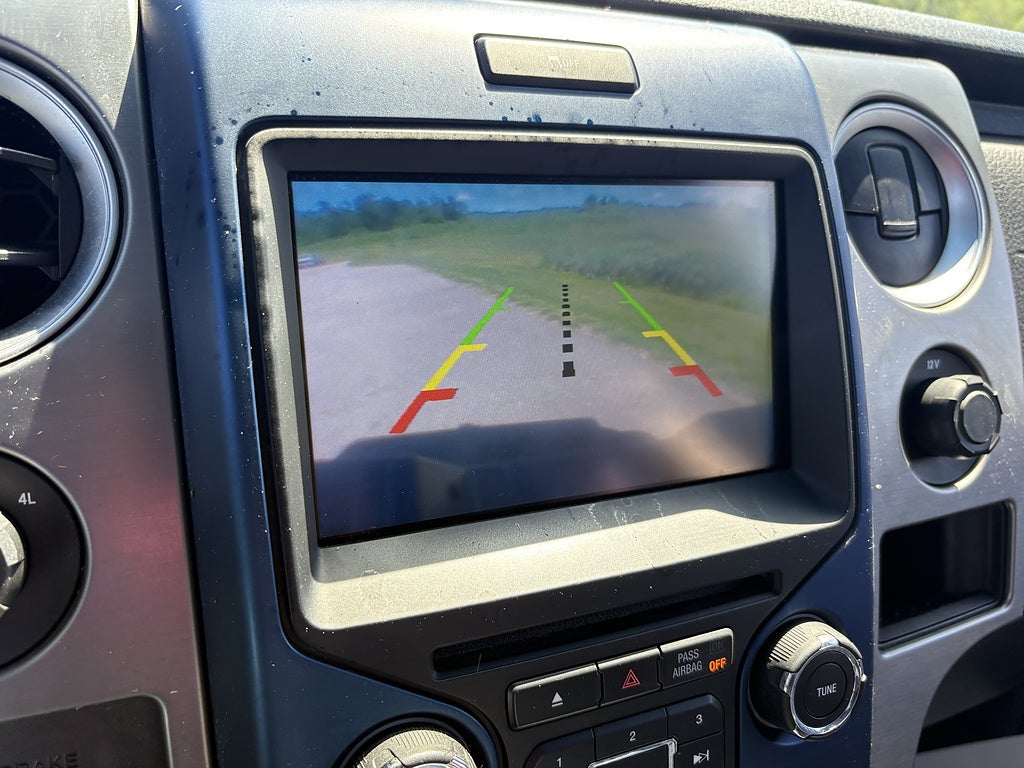

• Reverse sensing system
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Auto lock safety belt feature for child seats
• Tire pressure monitoring system
• Dual note horn

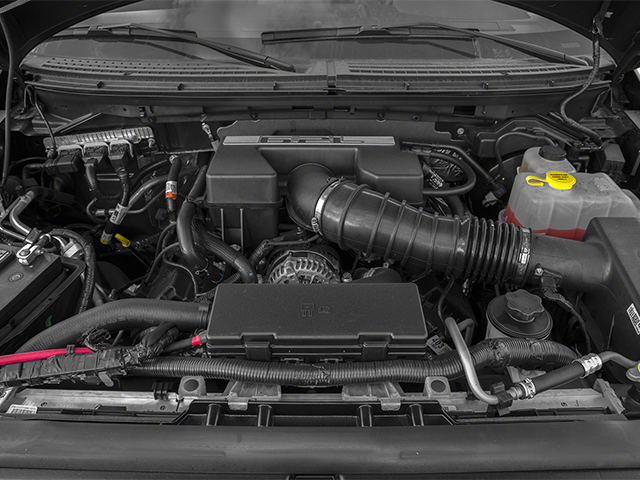

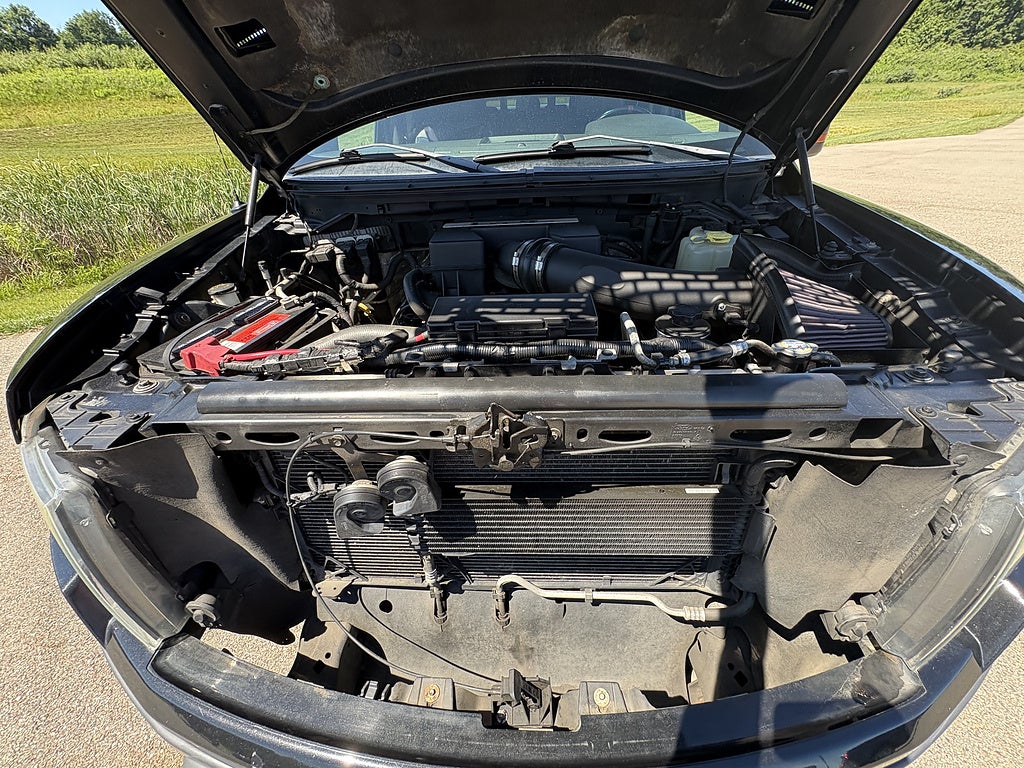

6.2L EFI V8 ENGINE

• (STD)

• 17 In. Cast Aluminum Wheels
• Equipment Group 801A
• Raptor Interior Color Accent Package
• 4.2 In. Infotainment Screen Size
• Height Driver Seat Power Adjustments
• Cloth Upholstery Accents
• Upfitter Switches
• SYNC Infotainment
• Hill Descent Off-road Driving Assist
• With Read Function Electronic Messaging Assistance
• Bluetooth® Auxiliary Audio Input
• Voice Operated Radio
• SiriusXM Satellite Radio
• Aluminum Running Board Color
• Rear Tow Hooks
• Programmable Safety Key
• Vinyl Rear Seat Upholstery
• IPod/iPhone Auxiliary Audio Input
• Black Front Bumper Color
• 3-point Front Seatbelts
• 3-point Rear Seatbelts
• Capless Fuel Filler System
• Voice Control Steering Wheel Mounted Controls
• Rear Cupholders
• Aluminum Alloy Spare Wheel Type

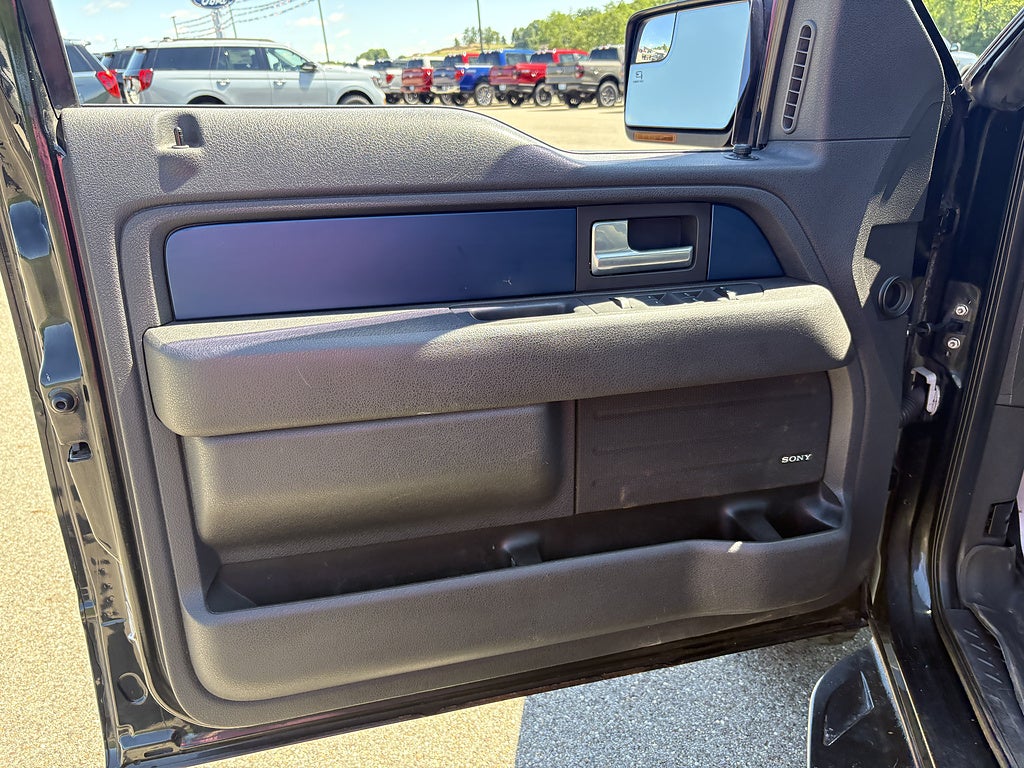

• Door Pockets Storage
• Front Seatback Storage
• Rear Parking Sensors
• Multi-function Steering Wheel Mounted Controls
• Phone Steering Wheel Mounted Controls
• Cruise Control Steering Wheel Mounted Controls
• USB Auxiliary Audio Input
• Jack Auxiliary Audio Input
• Auto-dimming Rearview Mirror
• Blacked Out Headlights
• Scuff Plate Door Sill Trim
• Lighter Element
• Ashtray
• Short And Long Arm Front Suspension Type
• Maintenance-free Battery
• Black Fender Lip Moldings
• Front Struts
• Lumbar Passenger Seat Manual Adjustments
• Powertrain Skid Plate(s)
• Front Skid Plate(s)
• Black Grille Color
• Removable Tailgate
• Auxiliary Transmission Fluid Cooler
• Carpet Floor Material
• Folds Up Rear Seat Folding
• Reclining Driver Seat Manual Adjustments
• Front Floor Mats
• Gas Front Shock Type
• Gas Rear Shock Type
• Adjustable Front Headrests
• 12V Front Power Outlet(s)
• Rear Reading Lights
• Power Side Mirror Adjustments
• Roll Stability Control
• Cargo Tie-down Anchors And Hooks Storage
• Trailer Hitch
• Multi-function Display
• Trailer Wiring
• Rear Floor Mats
• Keypad Entry
• Retractable Rear Headrests
• External Temperature Display
• Speed Sensitive Volume Control
• Low Oil Level Warnings And Reminders
• Dual Vanity Mirrors
• Hill Holder Control
• Running Boards
• Body-color Mirror Color
• Rear Privacy Glass
• Dual Tip Exhaust
• Low Fuel Level Warnings And Reminders
• Audio Steering Wheel Mounted Controls
• Front Overhead Console
• Radio Data System
• Pickup Bed Light
• Multi-leaf Rear Suspension Type
• 4-wheel ABS
• Compass
• Maintenance Due Warnings And Reminders
• Power Door Locks
• Keyless Entry Multi-function Remote
• Electronic Brakeforce Distribution
• Vehicle Immobilizer Anti-theft System
• LATCH System Child Seat Anchors
• Child Safety Door Locks
• Lumbar Driver Seat Manual Adjustments
• Tire Pressure Monitoring System

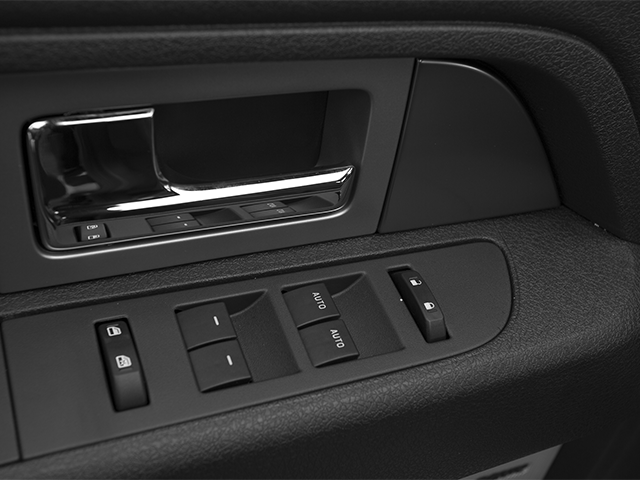

• Power Windows
• Power Steering
• Cruise Control
• Alarm Anti-theft System
• Tachometer Gauge
• Rear Window Defogger
• Traction Control
• Stability Control
• Front Side Curtain Airbags
• Dual Front Airbags
• Rear Locking Differential
• Off-road Tuned Suspension
• Trailer Stability Control
• Black Rear Bumper Color
• Clock
• Front Limited Slip Differential
• 60-40 Split Bench Rear Seat Type
• AM/FM Radio
• Leather Steering Wheel Trim
• Leather Upholstery
• 12V Rear Power Outlet(s)
• Ventilated Disc Front Brake Type
• Bucket Front Seat Type
• Front Reading Lights
• Underbody Spare Tire Mount Location
• 2 Front Headrests
• Split Rear Seat Folding
• Front Seatbelt Force Limiters
• Intermittent Front Wipers
• MP3 Playback In-Dash CD
• Bluetooth® Wireless Data Link
• Passenger Seat Manual Adjustments
• Coil Front Spring Type
• Front Tow Hooks
• 1 One-touch Windows
• Single Disc In-Dash CD
• 3 Rear Headrests
• 750 CCA Battery Rating
• Front Seatbelt Pretensioners
• Front Stabilizer Bar
• Alloy Shift Knob Trim
• Leather Shift Knob Trim
• 6 Driver Seat Power Adjustments
• Leaf Rear Spring Type
• Dual Front Air Conditioning Zones

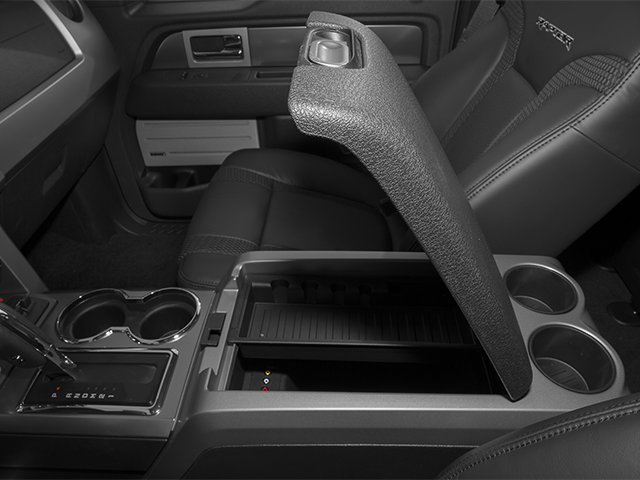

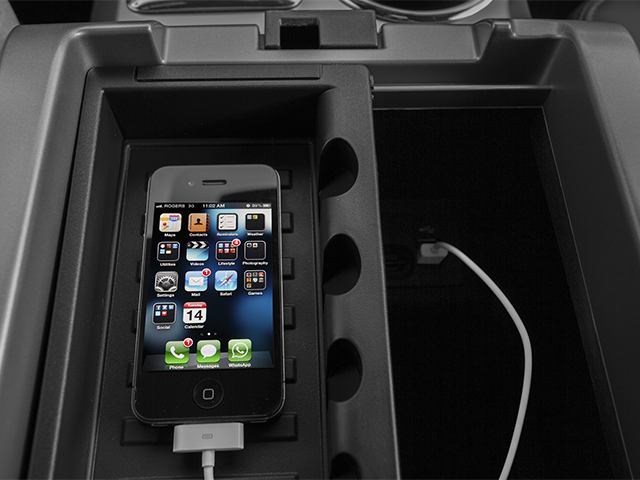

• Front Console With Storage Center Console
• Mast Antenna Type
• Rear Side Curtain Airbags
• Post-collision Safety System Impact Sensor
• Spare Only Wheel Locks
• Electronic Hi-lo 4WD Selector
• Automatic Climate Control Front Air Conditioning
• Solid Live Axle Rear Suspension Classification
• Tilt Steering Wheel
• Front Side Airbags
• Part Time 4WD Type
• Rubber/vinyl Floor Mat Material
• Front Cupholders
• Independent Front Suspension Classification
• Ventilated Disc Rear Brake Type
• Occupant Sensing Passenger Airbag Deactivation
• Full-size Matching Spare Tire Size
• 50 State Emissions System
• Front License Plate Bracket

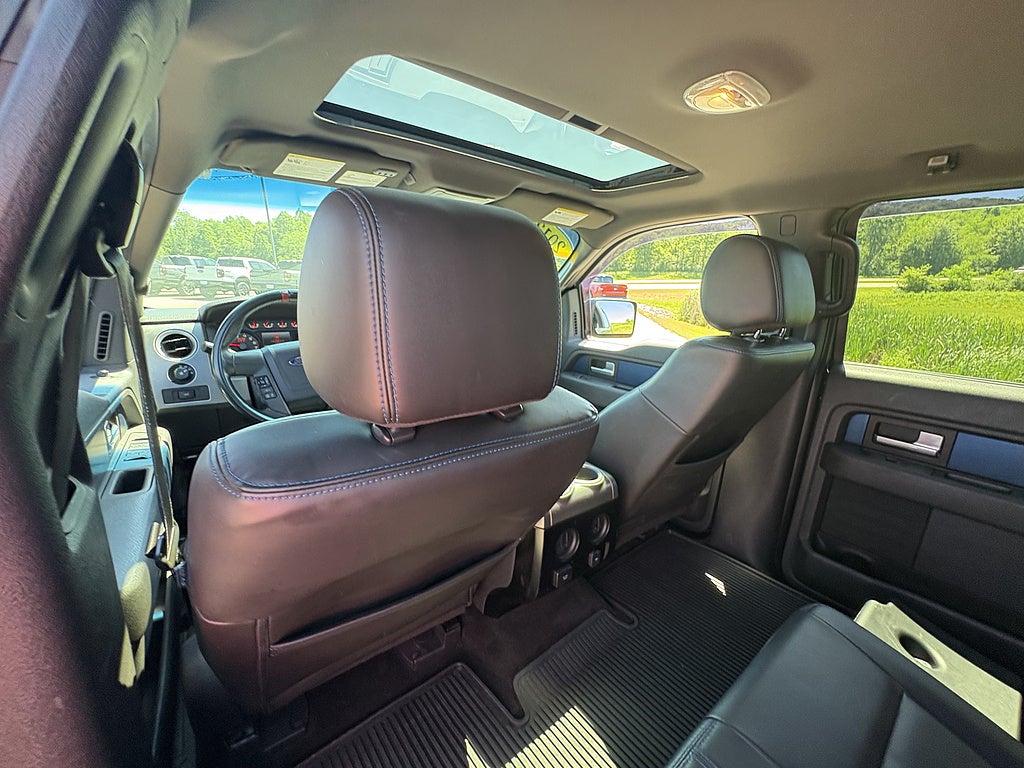

• Power Moonroof

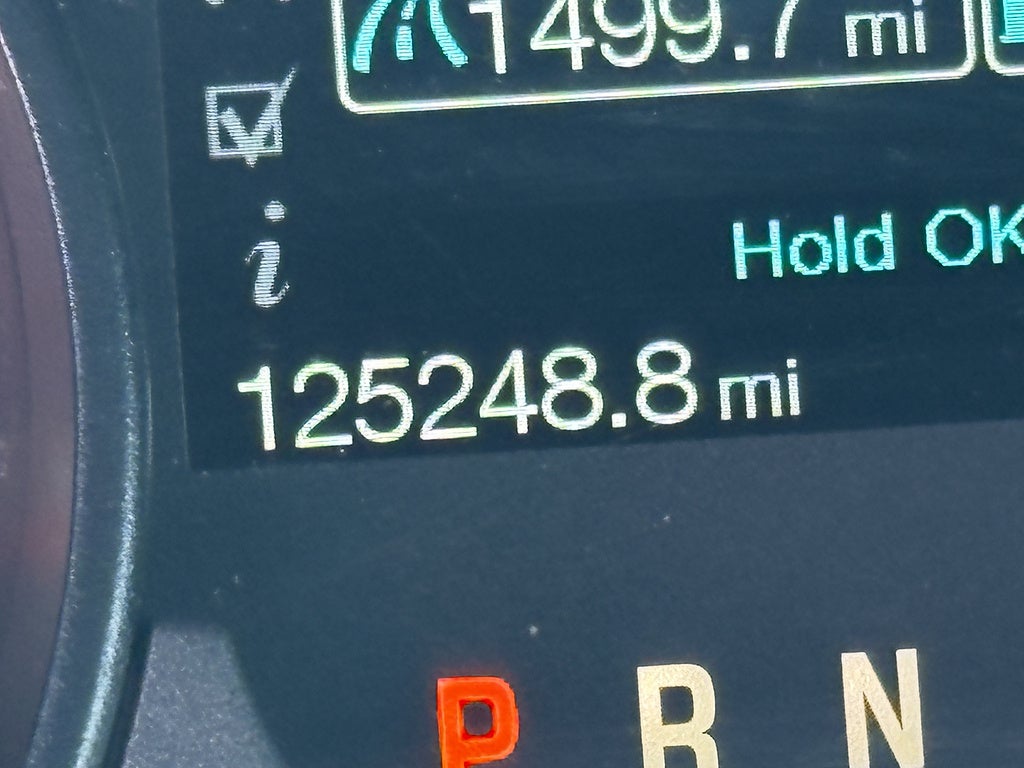

• Mileage
• Fuel Economy Est-Combined (MPG): 13
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 19.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4000
• Gross Axle Wt Rating - Rear (lbs): 3700
• Curb Weight - Front (lbs): 3459
• Curb Weight - Rear (lbs): 2654
• Gross Vehicle Weight Rating Cap (lbs): 7450
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1200
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 3700
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 4000
• Axle Capacity - Rear (lbs): 3700
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 46.99
• Shock Absorber Diameter - Rear (mm): 46.99
• Stabilizer Bar Diameter - Front (in): 1.08
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: - TBD -
• Rear Tire Order Code: - TBD -
• Front Tire Size: LT315/70R17
• Rear Tire Size: LT315/70R17
• Spare Tire Size: LT315/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8.5
• Rear Wheel Size (in): 17 x 8.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 145.2
• Length, Overall w/o rear bumper (in): 232.1
• Width, Max w/o mirrors (in): 86.3
• Height, Overall (in): 78.4
• Overhang, Front (in): 38.0
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 166.3
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): 62.3
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.5
• Second Hip Room (in): 64.6
• Summary

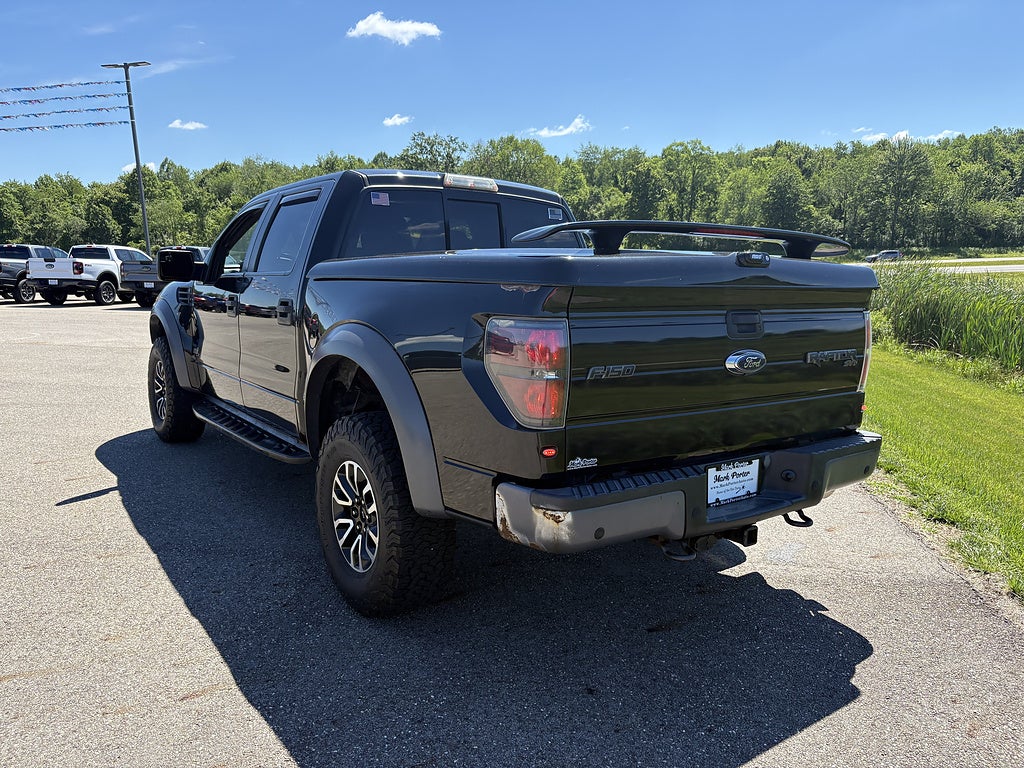

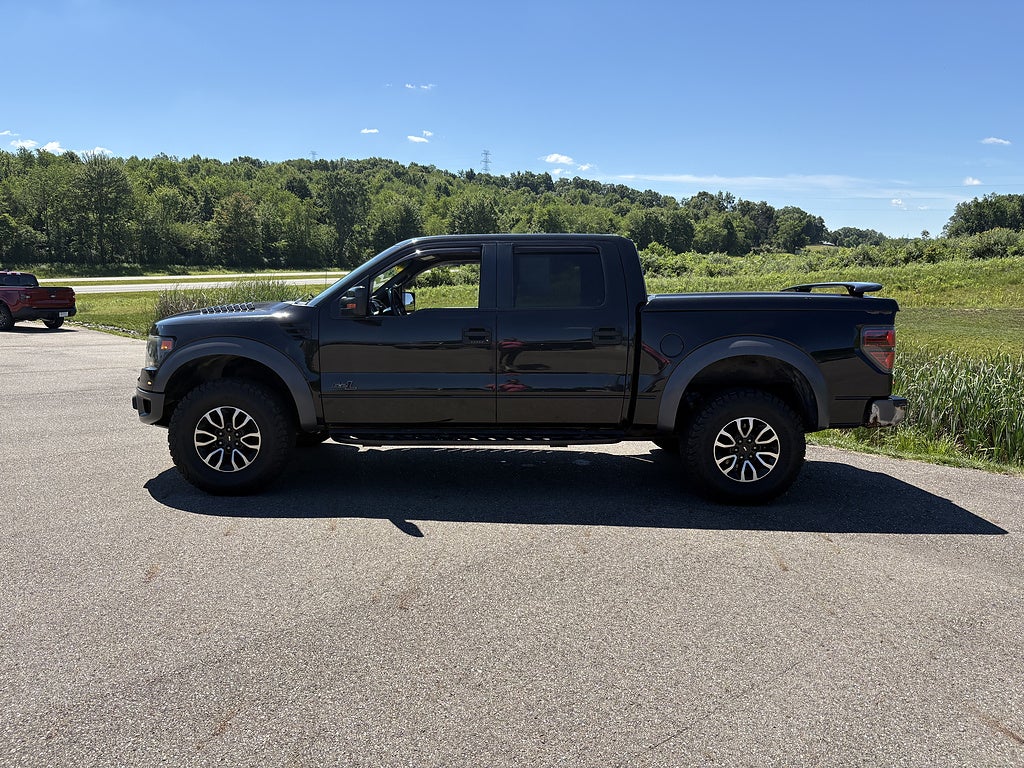

• Vehicle Name: Ford F-150
• Body Style: Crew Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 1 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 14.0
