• Wheels, 17" (43.2 cm) steel includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• Tires, LT245/75R17E all-season, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front chrome
• CornerStep, rear bumper (Requires (E63) pickup box.)
• Bumper, rear chrome with bumper CornerSteps (Requires (E63) pickup box.)
• Grille surround, chrome
• Headlamps, halogen projector
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Door handles, Black
• Tailgate and bed rail protection caps, top
• Tailgate, locking, utilizes same key as ignition and door (Deleted with (ZW9) pickup box delete.)

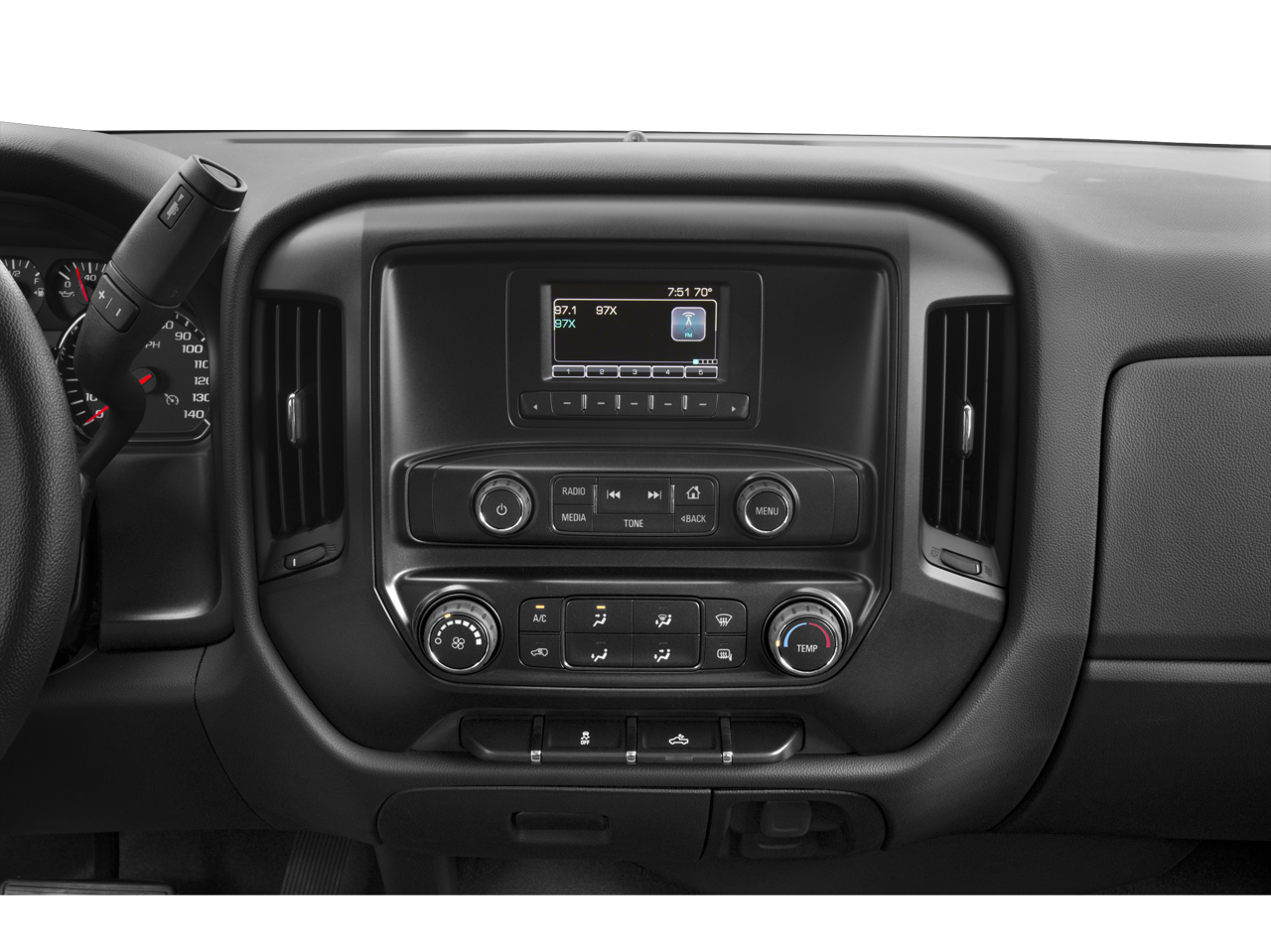

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports auxiliary jack and SD card slot (Upgradeable to (IO4) 4.2" diagonal color display radio with Chevrolet MyLink.)
• XM Satellite Radio, delete
• 6-speaker audio system

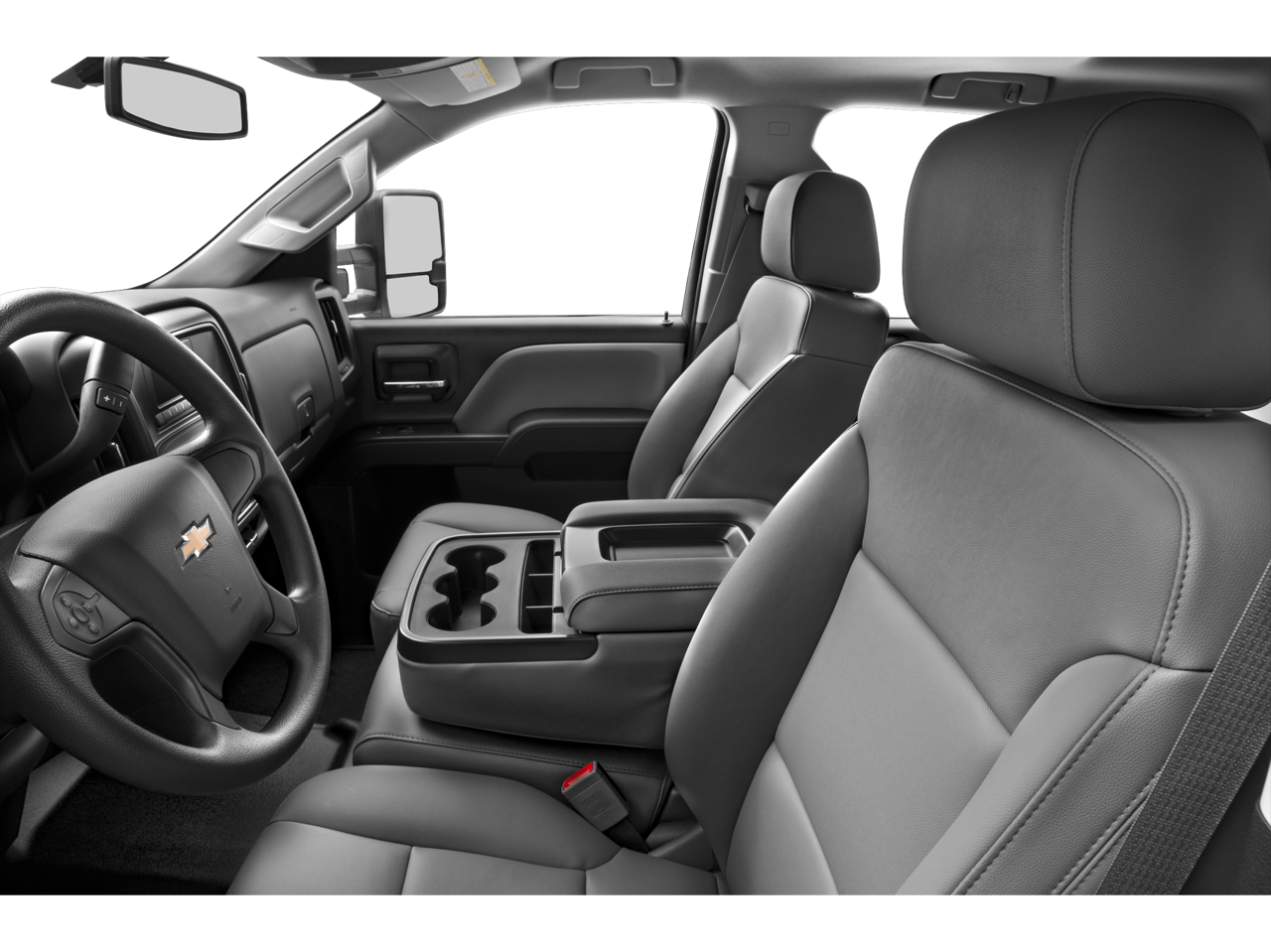

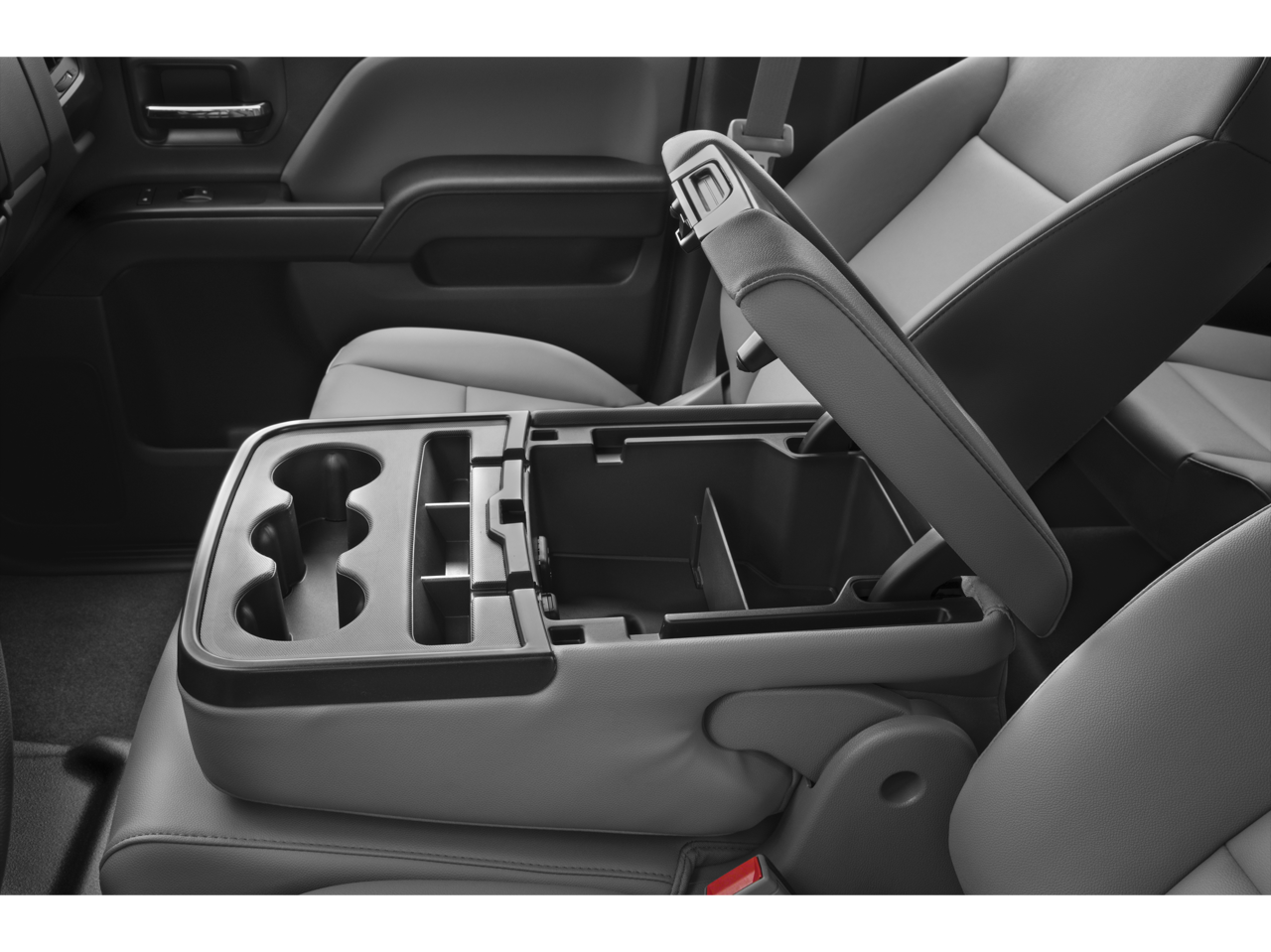

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Seat trim, Cloth

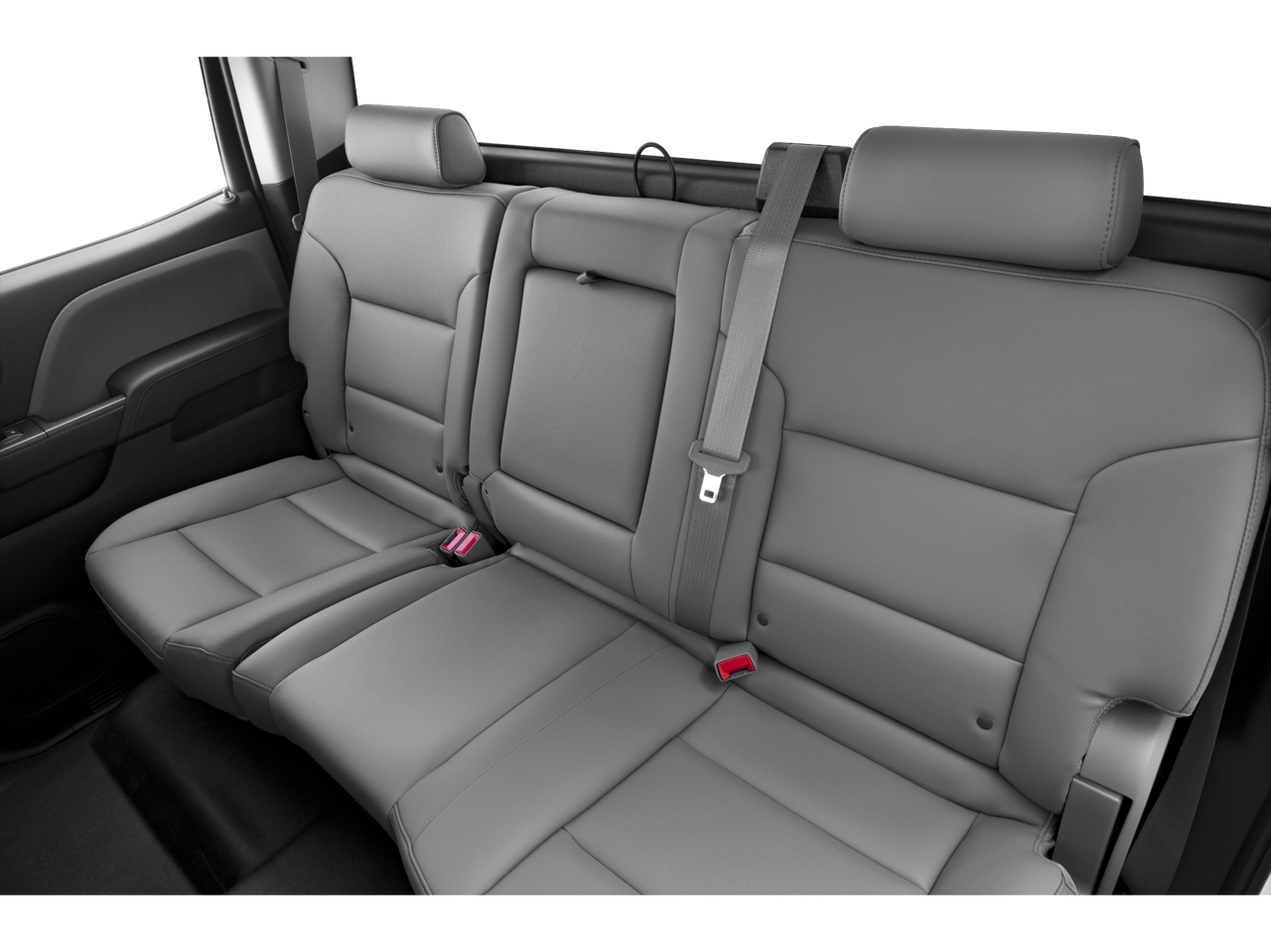

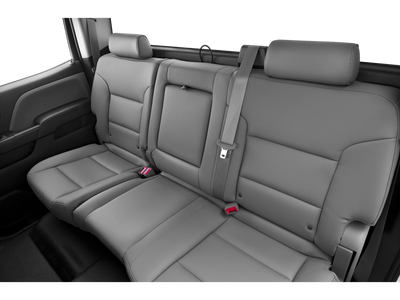

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

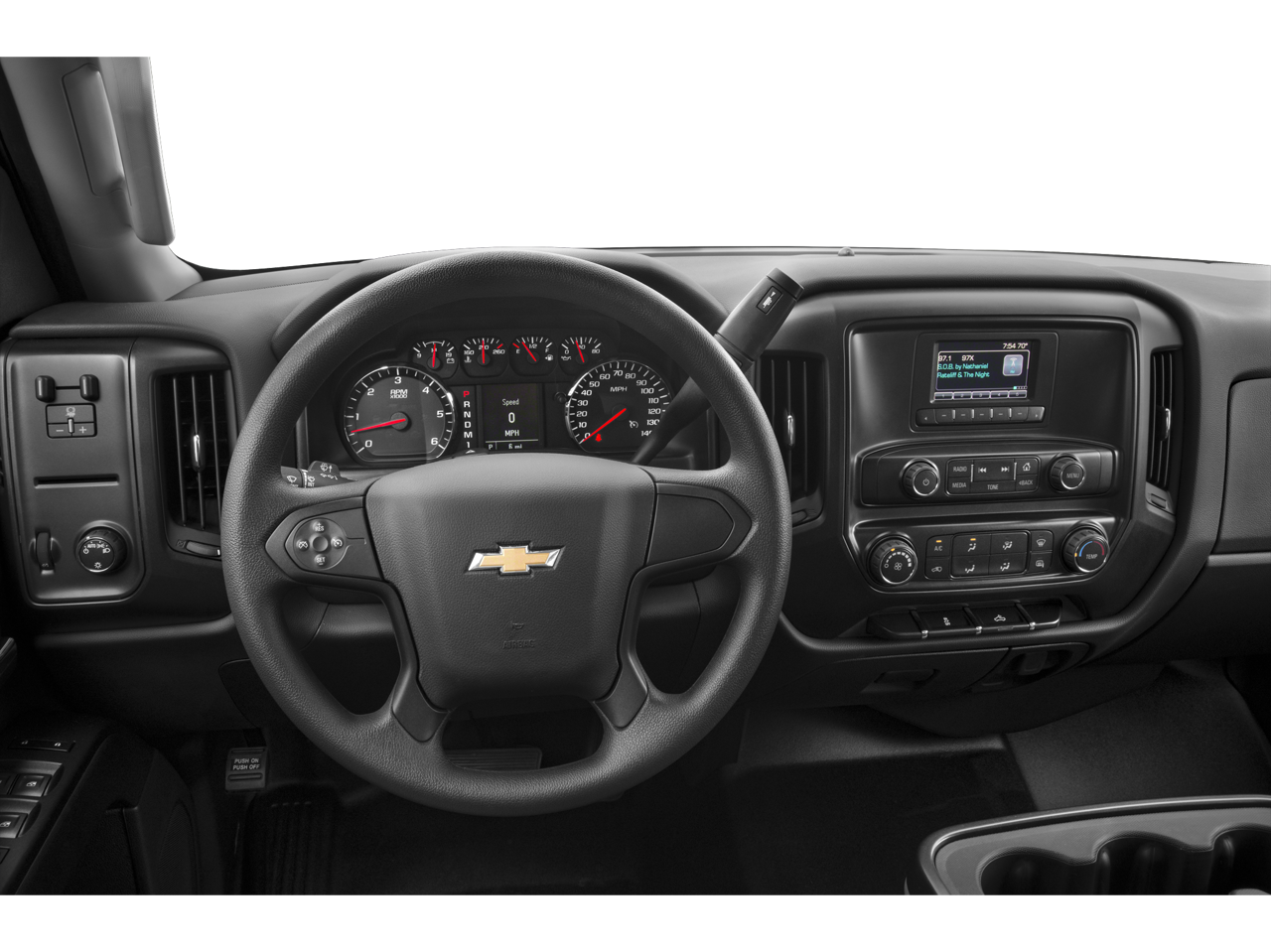

• Steering column, manual Tilt-Wheel
• Steering wheel
• Floor covering, Graphite-colored rubberized-vinyl
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, delete also deletes driver information center compass.
• Tire Pressure Monitoring System (does not apply to spare tire)

• 2015 Interim Processing Code

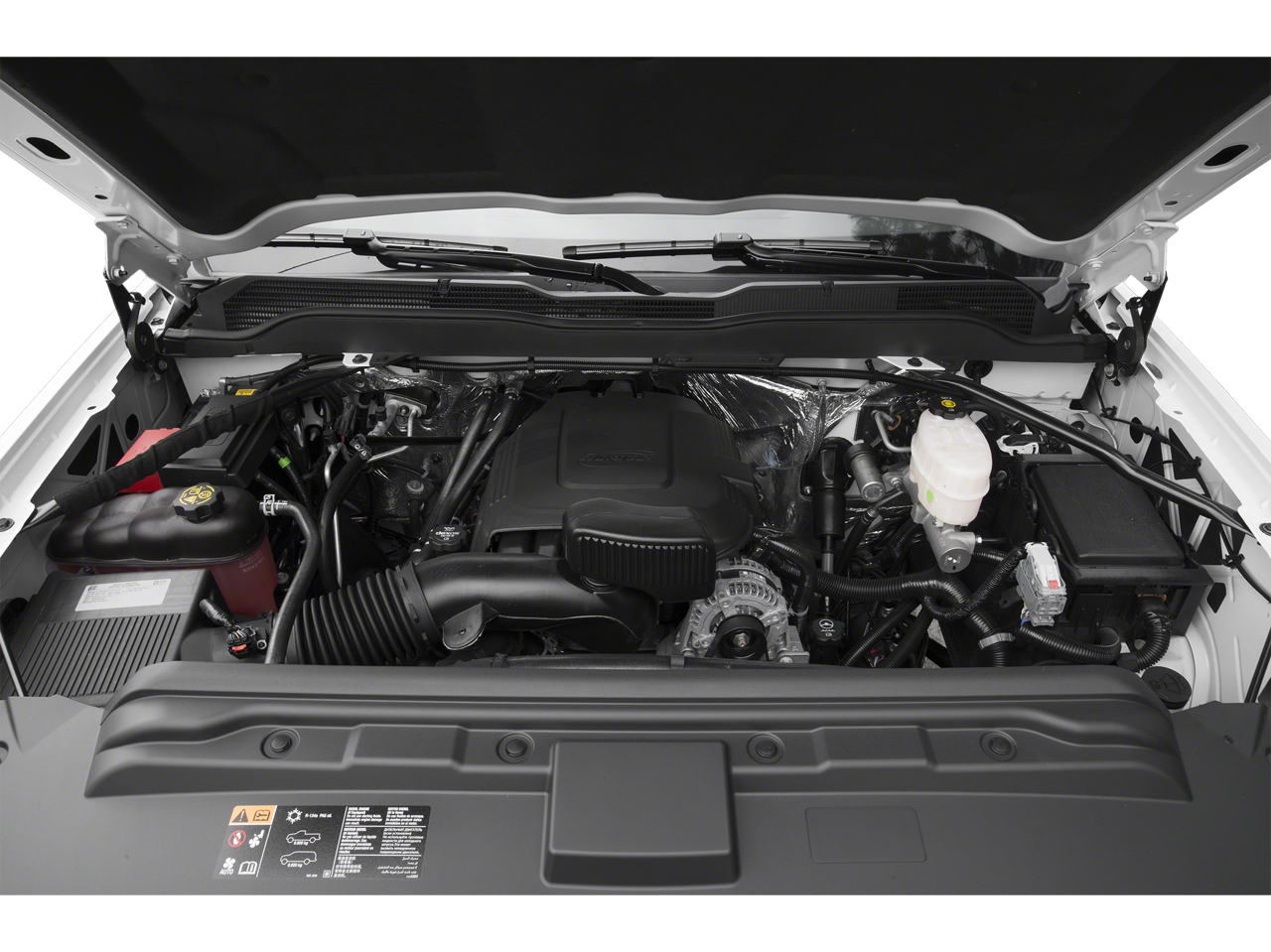

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

• WT Fleet Convenience Package
• Chevrolet MyLink Audio System w/ AVF
• Power Adjustable Camper Style Mirrors
• Rear Integrated Corner Step Bumper Detail
• 3.5 In. Instrument Cluster Screen Size
• 4.2 In. Infotainment Screen Size
• Height Driver Seat Manual Adjustments
• Twin-tube Gas Front Shock Type
• Trip Odometer
• 3-point Front Seatbelts
• 3-point Rear Seatbelts
• Diameter 33 Mm Front Stabilizer Bar
• Chrome Front Bumper Color
• Front Seatback Storage
• Cruise Control Steering Wheel Mounted Controls
• Memory Card Slot Auxiliary Audio Input
• USB Auxiliary Audio Input
• Jack Auxiliary Audio Input
• Sun Visors
• Short And Long Arm Front Suspension Type
• Maintenance-free Battery
• Oil Pressure Gauge
• Chrome Rear Bumper Color
• 150 Amps Alternator
• Auxiliary Oil Cooler
• Stainless Steel Exhaust Tip Color
• Air Filtration
• Auxiliary Transmission Fluid Cooler
• Chrome Surround Grille Color
• Folds Up Rear Seat Folding
• Rear Assist Handle
• Reclining Passenger Seat Manual Adjustments
• Reclining Driver Seat Manual Adjustments
• Rubber/vinyl Floor Material
• Twin-tube Gas Rear Shock Type
• Adjustable Front Headrests
• Front Seatbelt Warning Sensor
• Full-size Spare Tire Size
• Roll Stability Control
• Heavy Duty Battery
• Multi-function Display
• Battery Saver
• Solar-tinted Glass
• Front Center Armrests
• Power Brakes
• Digital Odometer
• Hill Holder Control
• Manual Day/night Rearview Mirror
• Front Air Conditioning
• Low Fuel Level Warnings And Reminders
• Adjustable Rear Headrests
• Lockout Button Power Windows
• Pickup Bed Light
• Black Mirror Color
• Black Door Handle Color
• Multi-leaf Rear Suspension Type
• 4-wheel ABS
• Tow/Haul Mode
• Maintenance Due Warnings And Reminders
• Driver Seat Manual Adjustments
• Power Door Locks
• Child Safety Door Locks
• Tire Pressure Monitoring System
• Variable Intermittent Front Wipers
• Power Windows
• Power Steering
• Cruise Control
• Tachometer Gauge
• Traction Control
• Stability Control
• Child Seat Anchors
• Front Side Curtain Airbags
• Braking Assist
• Dual Front Airbags
• Trailer Stability Control
• Black Window Trim
• Front Assist Handle
• Clock
• Vinyl Upholstery
• 60-40 Split Bench Rear Seat Type
• AM/FM Radio
• 6 Total Speakers
• Ventilated Disc Front Brake Type
• 40-20-40 Split Bench Front Seat Type
• Front Reading Lights
• Steel Spare Wheel Type
• Underbody Spare Tire Mount Location
• 2 Front Headrests
• Manual Side Mirror Adjustments
• Passenger Seat Manual Adjustments
• Torsion Bars Front Spring Type
• Front Tow Hooks
• 4 One-touch Windows
• 2 Rear Headrests
• Front Seatbelt Pretensioners
• Leaf Rear Spring Type
• Single Front Air Conditioning Zones
• 720 CCA Battery Rating
• Steel Wheels
• Element Antenna Type
• Halogen Headlights
• Rear Side Curtain Airbags
• Manual Hi-lo 4WD Selector
• Solid Live Axle Rear Suspension Classification
• Tilt Steering Wheel
• Front Side Airbags
• Part Time 4WD Type
• Daytime Running Lights
• Independent Front Suspension Classification
• Disc Rear Brake Type
• Occupant Sensing Passenger Airbag Deactivation
• Heavy-Duty Trailering Equipment
• LT265/70R17E All-Terrain Blackwall Tires
• Integrated Trailer Brake Controller
• Heavy Duty Locking Rear Differential
• Federal Emissions Requirements
• Front License Plate Bracket

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3788
• Curb Weight - Rear (lbs): 2736
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.65
• Ground Clearance, Rear (in): 9.65
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

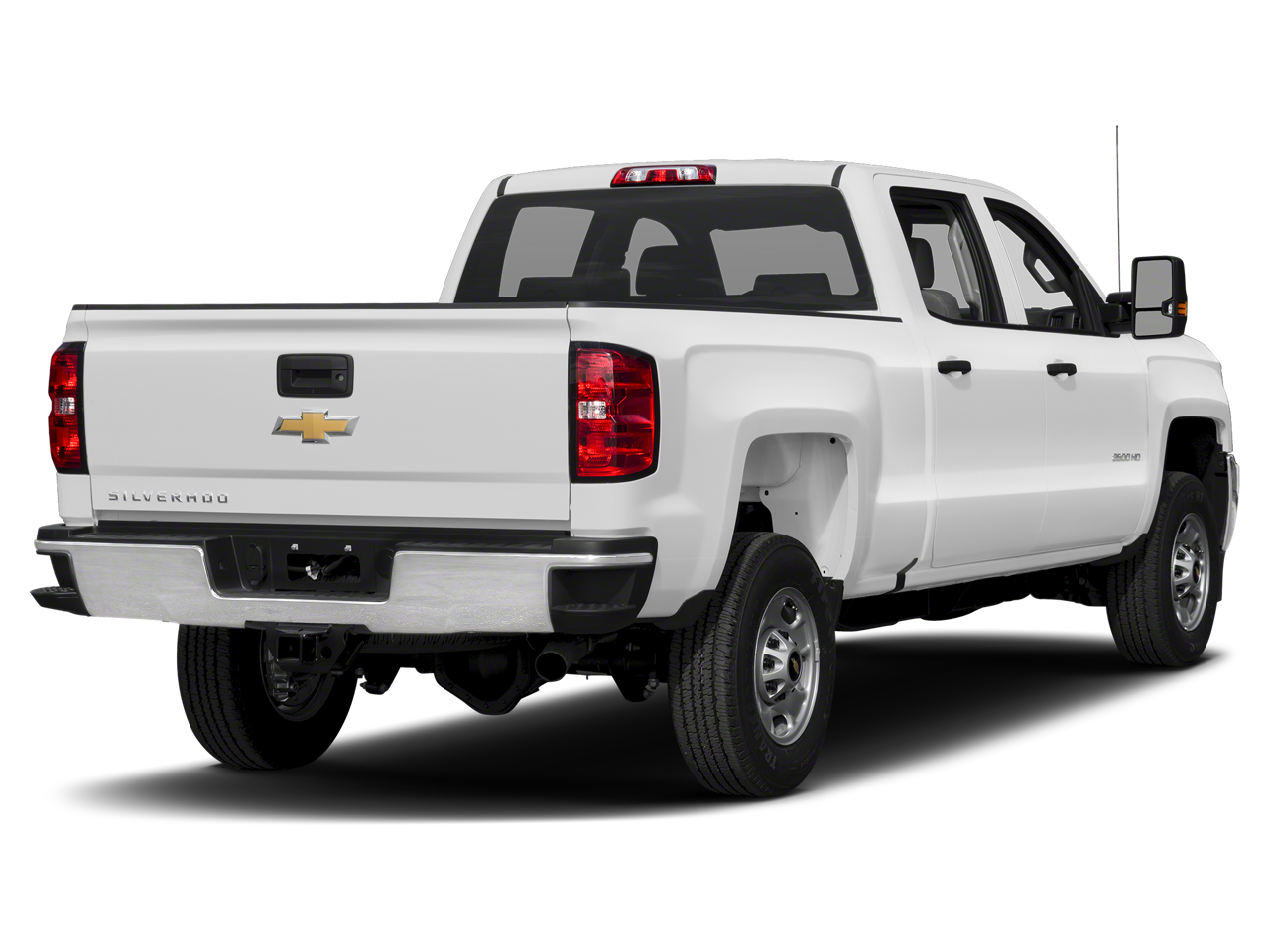

• Vehicle Name: Chevrolet Silverado 2500HD Built After Aug 14
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
